RY3820E 18V 2A 500KHz Synchronous Step-Down Regulator

RY3820E Description

ChipSourceTek RY3820E 18V 2A 500KHz Synchronous Step-Down Regulator .
The RY3820E is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs.

RY3820E Features

* Wide 4.5V to 18V Operating Input Range
* 2A Continuous Output Current
* 500KHz Switching Frequency
* Short Protection with Hiccup-Mode
* Built-in Over Current Limit
* Built-in Over Voltage Protection
* PFM Mode for High Efficiency in Light L

RY3820E Applications

* Digital Set-top Box (STB)
* Tablet Personal Computer (Pad)
* Flat-Panel Television and Monitor
* Wi-Fi Router / AP
* Digital Video Recorder (DVR)
* Portable Media Player (PMP)
* Cable Modem / XDSL
* General Purposes General Descrip

📥 Download Datasheet

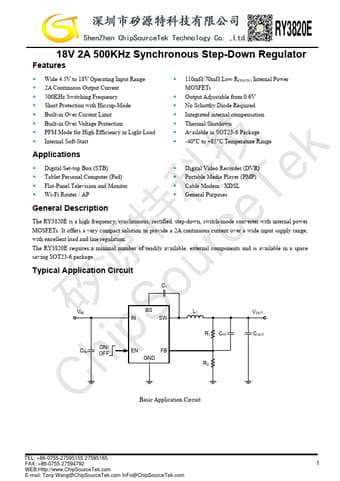

Preview of RY3820E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RY3820E
Manufacturer
ChipSourceTek
File Size
1.61 MB
Datasheet
RY3820E-ChipSourceTek.pdf
Description
18V 2A 500KHz Synchronous Step-Down Regulator
