PE8460K - N-Channel Enhancement Mode Power MOSFET

Name: PE8460K
SKU: PE8460K-1577208

ChipSourceTek

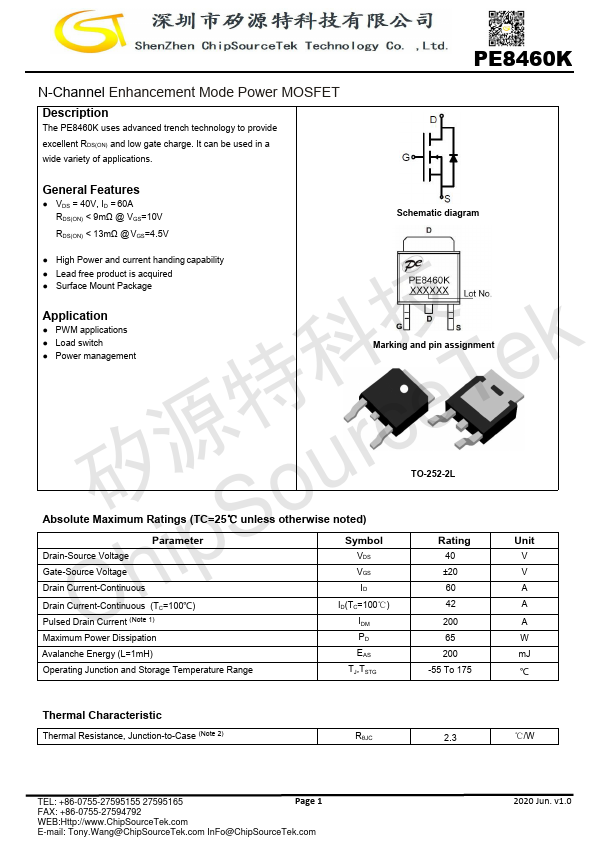

The PE8460K by ChipSourceTek is a N-Channel Enhancement Mode Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	PE8460K
Manufacturer	ChipSourceTek
File Size	787.92 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	PE8460K-ChipSourceTek.pdf

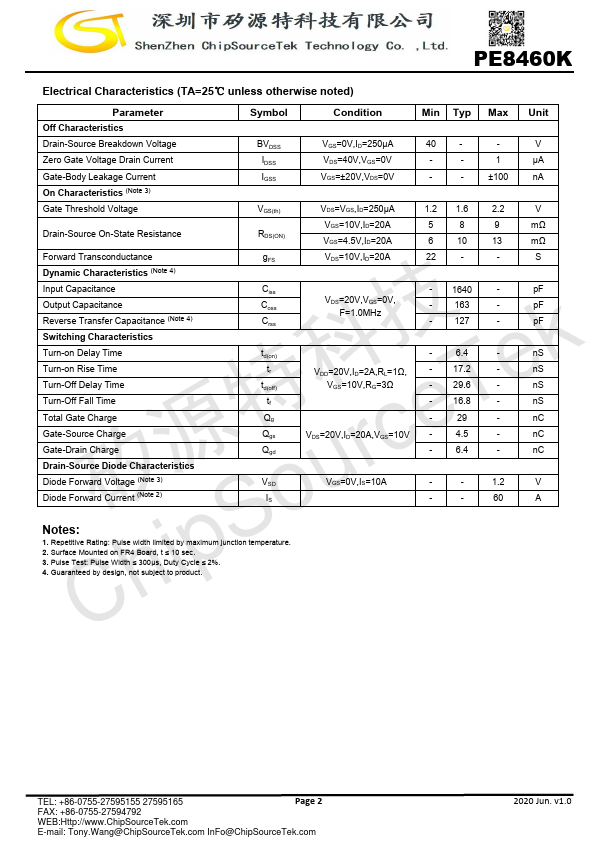

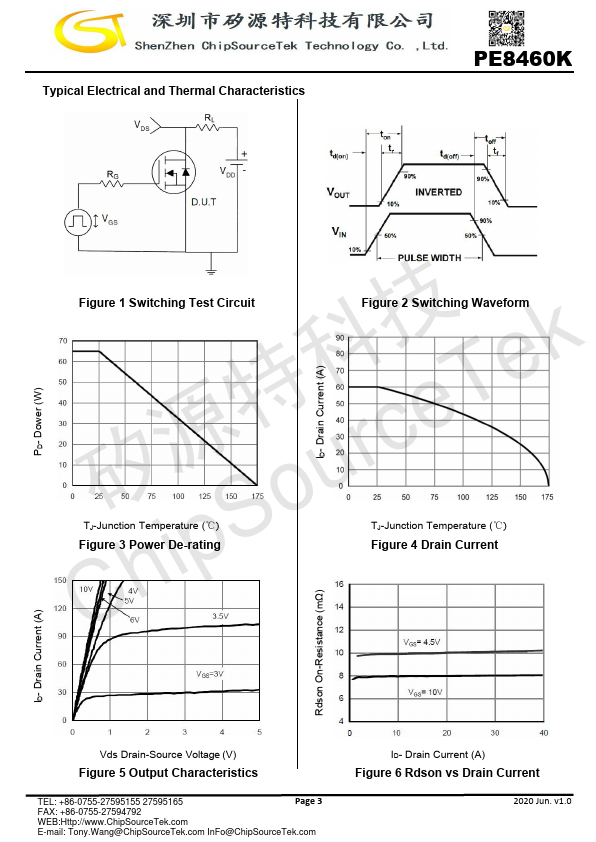

Additional preview pages of the PE8460K datasheet.

The PE8460K uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

VDS = 40V, ID = 60A RDS(ON) < 9mΩ @ VGS=10V RDS(ON) < 13mΩ @ VGS=4.5V Schematic diagram.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package.
