MX4435, MX4435-ChipSourceTek - P-Channel Enhancement Mode Power MOSFET

MX4435 Description

P-Channel Enhancement Mode Power MOSFET .
The MX4435 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.

MX4435 Applications

* u Load switch Power management Marking and pin Assignment o Absolute Maximum Ratings (TA=25℃unless otherwise noted) pS Drain-Source Voltage i Gate-Source Voltage Parameter TC =25℃ Symbol VDS VGS Limit -30 ±20 -7.5 Unit V V h TC =70℃ Continuous Drain Current (TJ =150℃) C TA =25℃ -6.5 ID A

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MX4435, MX4435-ChipSourceTek. Please refer to the document for exact specifications by model.

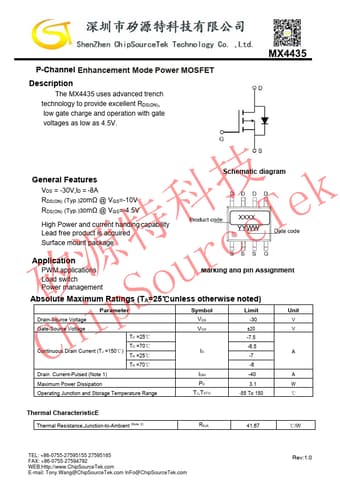

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MX4435, MX4435-ChipSourceTek
Manufacturer
ChipSourceTek
File Size
771.03 KB
Datasheet
MX4435-ChipSourceTek_removed.pdf
Description
P-Channel Enhancement Mode Power MOSFET
Note
This datasheet PDF includes multiple part numbers: MX4435, MX4435-ChipSourceTek.
Please refer to the document for exact specifications by model.
