MT3608 - High Efficiency 1.2MHz Current Mode Step-Up Converter

Product Overview

ChipSourceTek

📥 Download Datasheet

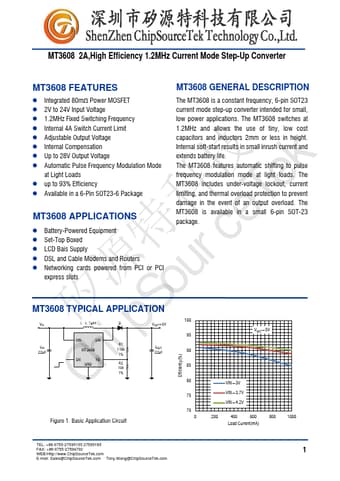

MT3608 High Efficiency 1.2MHz Current Mode Step-Up Converter by ChipSourceTek - Datasheet Preview — Datasheet preview – MT3608

Datasheet Details

Part number	MT3608
Manufacturer	ChipSourceTek
File Size	384.63 KB
Description	High Efficiency 1.2MHz Current Mode Step-Up Converter
Datasheet	MT3608 Datasheet
Additional preview pages of the MT3608 datasheet.

Product details

Description

The MT3608 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications.

Features

Integrated 80mΩ Power MOSFET.
2V to 24V Input Voltage.
1.2MHz Fixed Switching Frequency.
Internal 4A Switch Current Limit.
Adjustable Output Voltage.
Internal Compensation.
Up to 28V Output Voltage.
Automatic Pulse Frequency Modulation Mode at Light Loads.
up to 93% Efficiency.
Available in a 6-Pin SOT23-6 Package MT3608.
