HS517R Omnipolar CMOS Output Hall Effect Switch

HS517R Description

HS517R Omnipolar CMOS Output Hall Effect Switch General .
The HS517R Omnipolar Hall effect sensor IC is fabricated from mixed signal CMOS technology.

HS517R Applications

* requiring extended operating lifetime in battery powered systems. The output transistor of the HS517R will be latched on (BOP) in the presence of a sufficiently strong South or North magnetic field facing the marked side of the package. The output will be latched off (BRP) in the absence of amagneti

📥 Download Datasheet

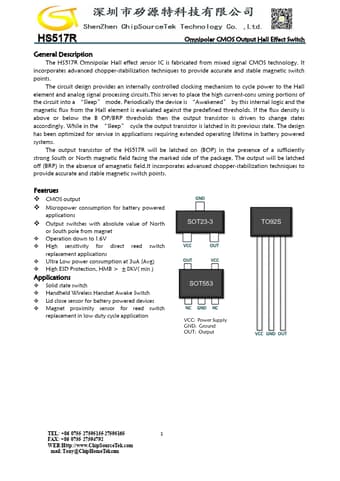

Preview of HS517R PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HS517R
Manufacturer
ChipSourceTek
File Size
2.32 MB
Datasheet
HS517R-ChipSourceTek.pdf
Description
Omnipolar CMOS Output Hall Effect Switch
