FM16 - 16M BIT SPI NOR FLASH

ChipSourceTek

📥 Download Datasheet

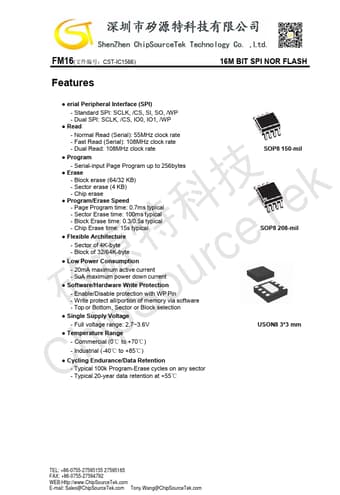

FM16 Datasheet Preview — Preview of FM16 PDF

Datasheet Details

Part number	FM16
Manufacturer	ChipSourceTek
File Size	884.90 KB
Description	16M BIT SPI NOR FLASH
Datasheet	FM16-ChipSourceTek.pdf

FM16 Product details

Description

16M BIT SPI NOR FLASH The FM16 is 16M-bit Serial Peripheral Interface (SPI) Flash memory, and supports the Dual SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO).The Dual Output data is transferred with speed of 108Mbits/s.The device uses a single low voltage power supply, ranging from 2.7 Volt to 3.6 Volt.Additionally, the device supports JEDEC standard manufacturer and device ID.In order to meet environmental requirements, Boya Microelectronics offers an 8-pin SOP 150-mi

Features

erial Peripheral Interface (SPI) - Standard SPI: SCLK, /CS, SI, SO, /WP - Dual SPI: SCLK, /CS, IO0, IO1, /WP.
Read - Normal Read (Serial): 55MHz clock rate - Fast Read (Serial): 108MHz clock rate - Dual Read: 108MHz clock rate SOP8 150-mil.
Program - Serial-input Page Program up to 256bytes.
Erase - Block erase (64/32 KB) - Sector erase (4 KB) - Chip erase k.
Program/Erase Speed - Page Program time: 0.7ms typical e - Sector Erase time: 100ms typical - Block Eras.
