FM1119C - Single Pole Four Throw Switch

Description

performance achieved by the FM1119C make it ideal for use in multi-mode GSM/GPRS/ EDGE/WCDMA/LTE applications.

The FM1119C is controlled by a standard GPIO interface for easy control.

Features

  • The FM1119C is a single-pole four-throw (SP4T).
  • Low insertion loss: 0.4 dB at 1 GHz. switch designed for static Antenna/impedance tuning.
  • High peak voltage handling.

📥 Download Datasheet

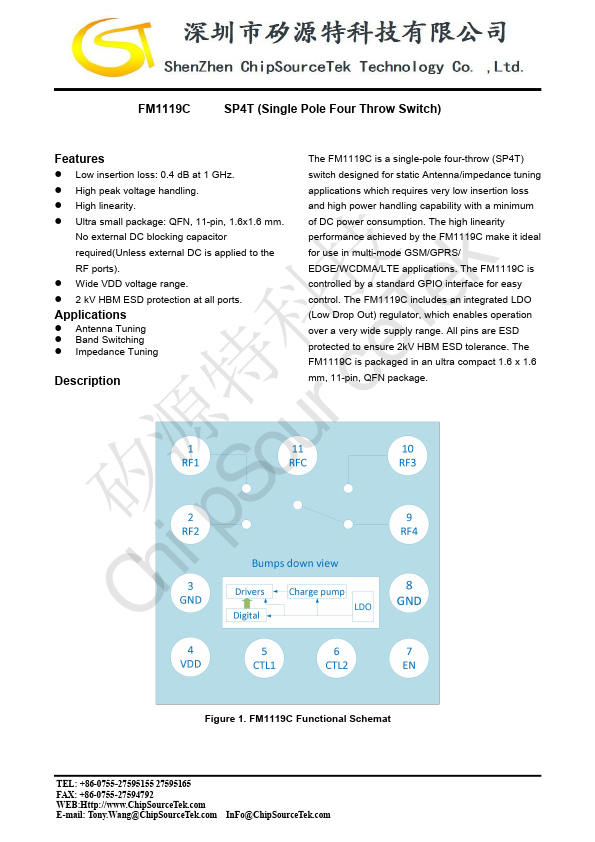

Datasheet preview – FM1119C

Datasheet Details

Part number FM1119C
Manufacturer ChipSourceTek
File Size 858.15 KB
Description Single Pole Four Throw Switch
Datasheet download datasheet FM1119C Datasheet

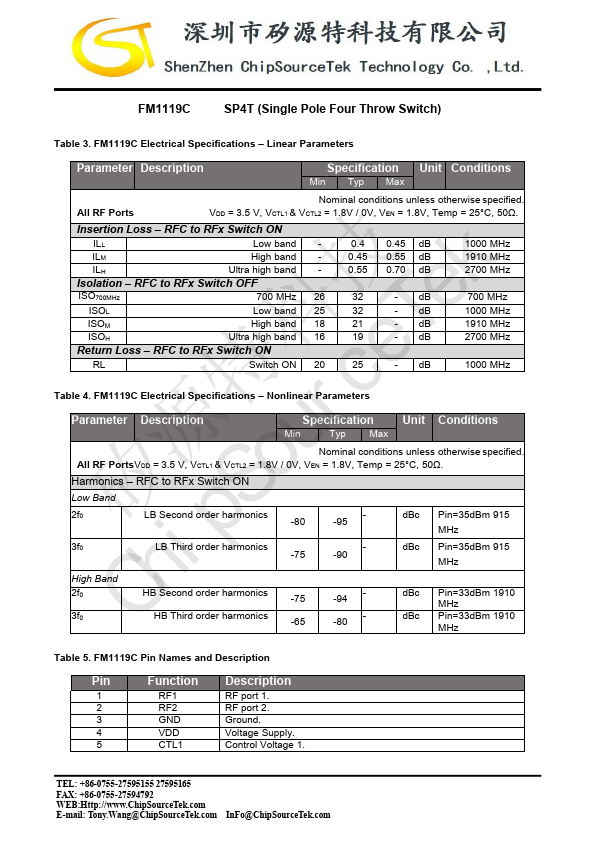

Additional preview pages of the FM1119C datasheet.

📁 Similar Datasheet

  • FM1110 - Nonvolatile 5V Dual State Saver (Ramtron International Corporation)
  • FM1112 - Nonvolatile 3V Dual State Saver (Ramtron International Corporation)
  • FM1114 - Nonvolatile 3V Dual State Saver (Ramtron International Corporation)
  • FM1100 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Rectron)
  • FM1100 - Chip Schottky Barrier Diode (Formosa MS)
  • FM1100-M - Chip Schottky Barrier Diode (Formosa MS)
  • FM1100-MH - Chip Schottky Barrier Diodes (Formosa MS)
  • FM1100-MS - SMD Schottky Barrier Rectifier (Formosa MS)
  • FM1100-N - Chip Schottky Barrier Rectifier (PACELEADER INDUSTRIAL)
  • FM1100-S - Chip Schottky Barrier Diodes (Formosa MS)
Other Datasheets by ChipSourceTek
  • FM1022 - DPDT SWITCH
  • FM1024 - 400 to 5000MHz DP4T Switch
  • FM1033 - 3P3T Switch
  • FM16 - 16M BIT SPI NOR FLASH
  • FM1660 - High power SP10T Switch
  • FM1694 - Single Pole Double Throw Switch

Full PDF Text Transcription

Click to expand full text
FM1119C SP4T (Single Pole Four Throw Switch) Features The FM1119C is a single-pole four-throw (SP4T)  Low insertion loss: 0.4 dB at 1 GHz. switch designed for static Antenna/impedance tuning  High peak voltage handling. applications which requires very low insertion loss  High linearity. and high power handling capability with a minimum  Ultra small package: QFN, 11-pin, 1.6x1.6 mm. of DC power consumption. The high linearity No external DC blocking capacitor required(Unless external DC is applied to the RF ports). k  Wide VDD voltage range.  2 kV HBM ESD protection at all ports.
