CG8513 - 3-Channel PC Power Supply Supervisors

Product Overview

ChipGoal

Datasheet Details

Part number	CG8513
Manufacturer	ChipGoal
File Size	307.93 KB
Description	3-Channel PC Power Supply Supervisors
Datasheet	CG8513 Datasheet
Additional preview pages of the CG8513 datasheet.

Product details

Description

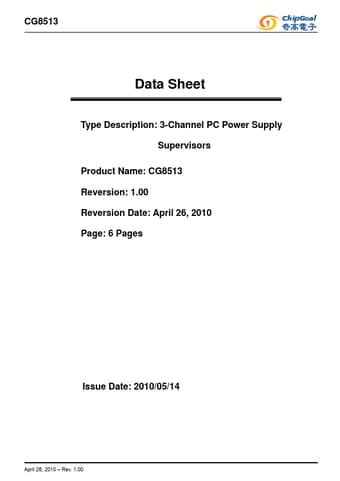

3-Channel PC Power Supply Supervisors Product Name: CG8513 Reversion: 1.00 Reversion Date: April 26, 2010 Page: 6 Pages Issue Date: 2010/05/14 April 26, 2010 Rev.

Features

Over-voltage protection (OVP) for 3.3V, 5V and 12V supplies.
Under-voltage protection (UVP) for 3.3V and 5V supplies.
Fault protection output (FPOB) with open drain output.
Power good output (PGO) with open drain output.
350ms PGO delay time.
38ms PSONB debounce time.
35us OVP debounce time.
73us UVP debounce time.
73us PGI debounce time.
4ms FPOB turn off delay time.
75ms UVP delay time Pin Configuration (Top View) 1 PGI 2 GND 3 FPOB 4 P.
