CR6851 - Novel Low Cost Green-Power PWM Controller

This page provides the datasheet information for the CR6851, a member of the CR6851-Chip Novel Low Cost Green-Power PWM Controller family.

Description

The CR6851 is a highly integrated low cost current mode PWM controller, which is ideal for small power current mode of offline AC-DC fly-back converter applications.

📥 Download Datasheet

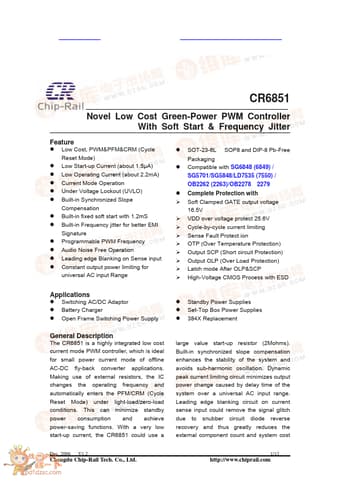

Datasheet preview – CR6851

Datasheet Details

Part number CR6851
Manufacturer Chip-Rail
File Size 296.61 KB
Description Novel Low Cost Green-Power PWM Controller
Datasheet download datasheet CR6851 Datasheet
