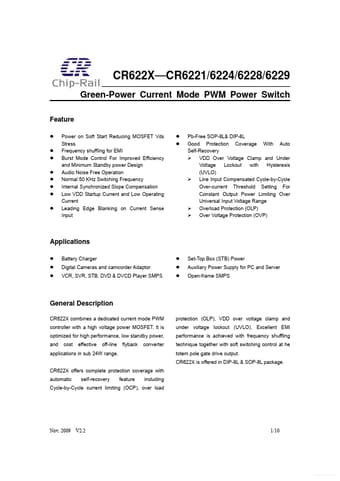

CR6228, CR6221_Chip - Green-Power Current Mode PWM Power Switch

Chip-Rail

Datasheet Details

Part number	CR6228, CR6221_Chip
Manufacturer	Chip-Rail
File Size	287.42 KB
Description	Green-Power Current Mode PWM Power Switch
Datasheet	CR6221_Chip-Rail.pdf
Note	This datasheet PDF includes multiple part numbers: CR6228, CR6221_Chip. Please refer to the document for exact specifications by model.

CR622X combines a dedicated current mode PWM controller with a high voltage power MOSFET.

Soft Start CR622X features an internal 4 ms soft start to soften the electrical stress occurring in the power supply during startup. It is activated during the power on sequence. As soon as VDD reaches UVLO(OFF), the peak current is gradually increased from nearly zero to the maximum level. Every restart up is followed by a soft start. Frequency shuffling for EMI improvement The frequency shuffling (switching frequency modulation) is implemented in CR622X. The oscillation frequency is modulated.
