CL6807 30V 1A LED driver

CL6807 Description

www.DataSheet.co.kr CHIPLINK SEMICONDUCTOR CL6807 30V 1A LED driver with internal switch GENERAL .
The CL6807 is a continuous mode inductive step-down converter, designed for driving single or multiple series connected LEDs efficiently from a voltag.

CL6807 Features

* Simple low parts count Wide input voltage range: 8V to 30V Up to 1A output current Single pin on/off and brightness control using DC voltage or PWM Typical 5% output current accuracy Inherent open-circuit LED protection High efficiency (up

CL6807 Applications

* Low voltage halogen replacement LEDs Automotive lighting Low voltage industrial lighting LED back-up lighting Illuminated signs TYPICAL APPLICATIONS PIN ASSIGNMENT 2008-09-09 1 http://www. chiplink-semi. com Datasheet pdf - http://www. DataSheet4U. net/ www. DataSheet.

📥 Download Datasheet

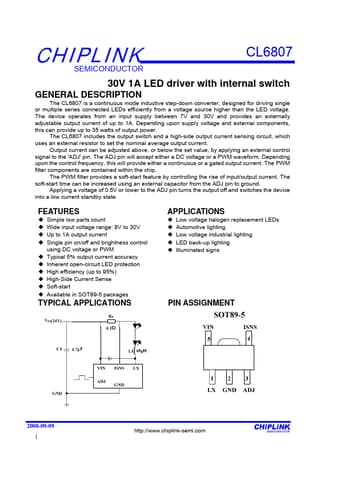

Preview of CL6807 PDF
