CX50101, CX5000 - (CX5000 Series) Structured ASIC

Chip Express

The CX50101 by Chip Express is a (CX5000 Series) Structured ASIC. Below is the official datasheet preview.

📥 Download Datasheet

CX50101 (CX5000 Series) Structured ASIC by Chip Express - Datasheet Preview — Official preview page of the **CX50101** (CX5000 Series) Structured ASIC datasheet (Chip Express).

Datasheet Details

Part number	CX50101, CX5000
Manufacturer	Chip Express
File Size	115.92 KB
Description	(CX5000 Series) Structured ASIC
Datasheet	CX5000_ChipExpress.pdf
Note	This datasheet PDF includes multiple part numbers: CX50101, CX5000. Please refer to the document for exact specifications by model.

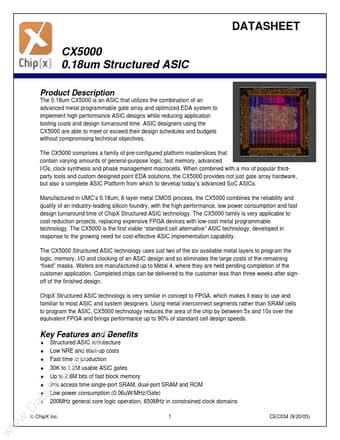

Additional preview pages of the CX50101 datasheet.

CX50101 Product details

Description

The 0.18um CX5000 is an ASIC that utilizes the combination of an advanced metal programmable gate array and optimized EDA system to implement high performance ASIC designs while reducing application tooling costs and design turnaround time.

Features

Structured ASIC architecture Low NRE and start-up costs Fast time to production 30K to 1.2M usable ASIC gates Up to 2.6M bits of fast block memory w w w a D . S a t 2ns access time single-port SRAM, dual-port SRAM and ROM e e h U 4 t m o . c Low power consumption (0.06uW/MHz/Gate) 200MHz general core logic operation, 650MHz in constrained clock domains 1 CEC034 (9/20/05) © ChipX Inc. www. DataSheet4U. com C.
