CAT6611 - Single-Link HDMI Transmitter

Description

The CAT6611 is a high-performance and low-cost single channel HDMI transmitter, fully compliant with HDMI 1.2, HDCP 1.1 and backward compatible to DVI 1.0 specifications.

Features

  • Single channel HDMI transmitter.
  • Compliant with HDMI 1.2, HDCP 1.1 and DVI 1.0 specifications.
  • Supporting pixel rates from 25MHz to 165MHz.
  • DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i up to 1080p.
  • PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA.
  • Various video input interface supporting digital video standards such as:.
  • 24-bit RGB/YCbCr 4:4:4.
  • 16/20/24-bit YCbCr 4:2:2.
  • 8/10/12-bit YCbCr 4:2:2 (CCIR-656).
  • 12-bit double data rate interface.

📥 Download Datasheet

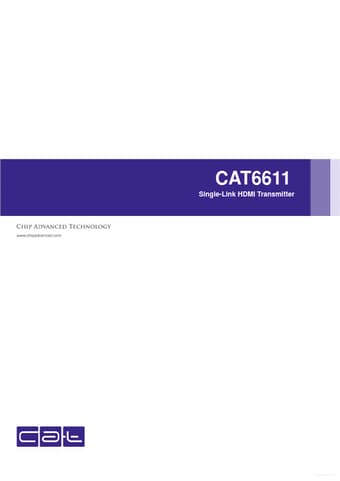

Datasheet preview – CAT6611

Datasheet Details

Part number CAT6611
Manufacturer Chip Advanced Technology
File Size 456.10 KB
Description Single-Link HDMI Transmitter
Datasheet download datasheet CAT6611 Datasheet
