CEB6031L, CEB6031L_Chino - N-Channel Logic Level Enhancement Mode Field Effect Transistor

Name: CEB6031L
SKU: CEB6031L-104209

Chino-Excel Technology

The CEB6031L by Chino-Excel Technology is a N-Channel Logic Level Enhancement Mode Field Effect Transistor. Below is the official datasheet preview.

📥 Download Datasheet

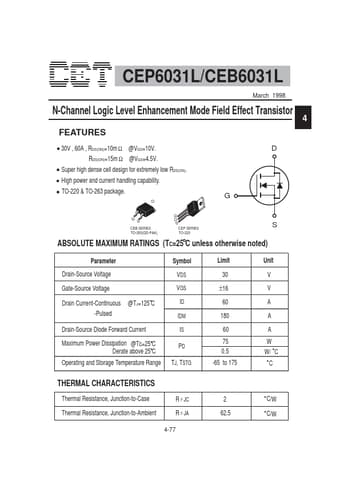

CEB6031L N-Channel Logic Level Enhancement Mode Field Effect Transistor by Chino-Excel Technology - Datasheet Preview — Official preview page of the **CEB6031L** N-Channel Logic Level Enhancement Mode Field Effect Transistor datasheet (Chino-Excel Technology).

Datasheet Details

Part number	CEB6031L, CEB6031L_Chino
Manufacturer	Chino-Excel Technology
File Size	36.43 KB
Description	N-Channel Logic Level Enhancement Mode Field Effect Transistor
Datasheet	CEB6031L_Chino-ExcelTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: CEB6031L, CEB6031L_Chino. Please refer to the document for exact specifications by model.
Additional preview pages of the CEB6031L datasheet.

CEB6031L Product details

Features

30V , 60A , RDS(ON)=10m Ω @VGS=10V. RDS(ON)=15m Ω @VGS=4.5V. Super high dense cell design for extremely low RDS(ON). High power and current handling capability. TO-220 & TO-263 package. D G D GS CEB SERIES TO-263(DD-PAK) G D S CEP SERIES TO-220 S.
