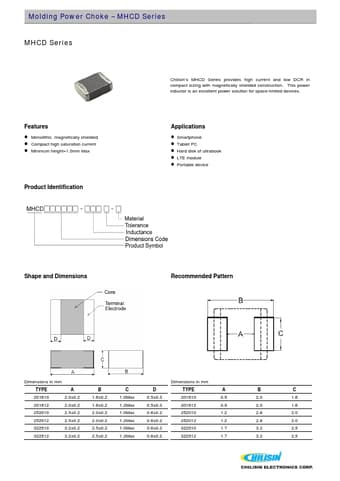

Molding Power Choke – MHCD Series MHCD Series
Chilisin’s MHCD Series provides high current and low DCR in compact sizing with magnetically shielded construction. This power inductor is an excellent power solution for space-limited devices.
Features
Monolithic, magnetically shielded Compact high saturation current Minimum height=1.0mm Max
Applications
Smartphone Tablet PC Hard disk of ultrabook LTE module Portable device
Product Identification
http://www.DataSheet4U.net/
Shape and Dimensions
Recommended Pattern
Dimensions in mm TYPE 201610 201612 252010 252012 322510 322512 A 2.0±0.2 2.0±0.2 2.5±0.2 2.5±0.2 3.2±0.2 3.2±0.2 B 1.6±0.2 1.6±0.2 2.0±0.2 2.0±0.2 2.5±0.2 2.5±0.2 C 1.0Max 1.2Max 1.0Max 1.2Max 1.0Max 1.2Max D 0.5±0.3 0.5±0.3 0.6±0.2 0.6±0.2 0.6±0.2 0.6±0.
