MB5052B - Leaded Power Chokes

Download the MB5052B datasheet PDF. This datasheet also covers the MB5026 variant, as both devices belong to the same leaded power chokes family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MB5026-ChilisinElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MB5052B
Manufacturer Chilisin Electronics
File Size 93.96 KB
Description Leaded Power Chokes
Datasheet download datasheet MB5052B Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MB5005 (MB5005 - MB5010) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER Dc Components
MB5005 (MB5005 - MB5010) 50 Amp Single Phase Bridge Rectifier MCC
MB5005 (MB5005 - MB5010) 50A Single-Phase Bridge Rectifier TAITRON Components Incorporated
MB5005 High Current Bridge Rectifier Comchip Technology
MB501 (MB5005 - MB5010) 50 Amp Single Phase Bridge Rectifier MCC

Other Datasheets by Chilisin Electronics

Part Number Description
MB5052B Leaded Power Chokes
MB5052B Leaded Power Chokes
MB5052B Leaded Power Chokes
MB5052 Leaded Power Chokes
MB5052 Leaded Power Chokes

Full PDF Text Transcription

Click to expand full text

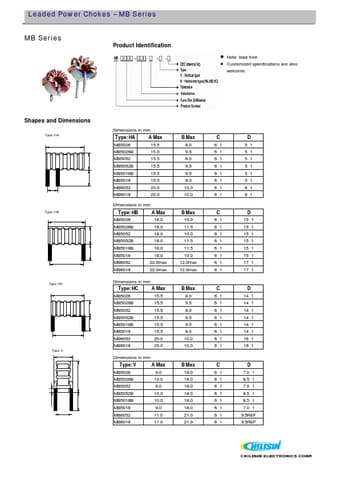

Leaded Power Chokes – MB Series MB Series Product Identification l Note: lead-free l Customized specifications are also welcome. Shapes and Dimensions Type: HA Type: HB Type: HC Type: V Dimensions in mm Type: HA A Max B Max C MB5026 15.5 8.0 61 MB5026B 15.5 9.5 61 MB5052 15.5 8.0 61 MB5052B 15.5 9.5 61 MB5018B 15.5 9.5 61 MB5018 15.5 8.0 61 MB6052 20.0 10.0 61 MB6018 20.0 10.0 61 Dimensions in mm Type: HB A Max B Max C MB5026 18.0 10.0 61 MB5026B 18.0 11.5 61 MB5052 18.0 10.0 61 MB5052B 18.0 11.5 61 MB5018B 18.0 11.5 61 MB5018 18.0 10.0 61 MB6052 22.0max 12.0max 61 MB6018 22.0max 12.0max 61 Dimensions in mm Type: HC A Max B Max C MB5026 15.5 8.0 61 MB5026B 15.5 9.5 61 MB5052 15.5 8.
