DMI1210 - Leaded Power Chokes

Download the DMI1210 datasheet PDF. This datasheet also covers the DMI0807 variant, as both devices belong to the same leaded power chokes family and are provided as variant models within a single manufacturer datasheet.

Features

  • l Shield construction l Ultra low buzz noise, due to un-assembly structure l 100% Lead free Product Identification DIM series is designed with low RDC and ultra large current. Its molded magnetic shielded type is suitable for high-density mounting and ultra low buzz noise. Soldering conditions can be easily confirmed when mounting onto the board. This series also Provides customers with embossed carrier type packaging for automatic mounting machine.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DMI0807-ChilisinElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DMI1210
Manufacturer Chilisin Electronics
File Size 165.76 KB
Description Leaded Power Chokes
Datasheet download datasheet DMI1210 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMI-18A Flange Mounted Double-balanced Mixer M/A-COM
DMI3110A Digital MAC Interface Micronas

Other Datasheets by Chilisin Electronics

Part Number Description
DMI1208 Leaded Power Chokes
DMI1209 Leaded Power Chokes
DMI1009 Leaded Power Chokes
DMI1108 Leaded Power Chokes
DMI1109 Leaded Power Chokes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

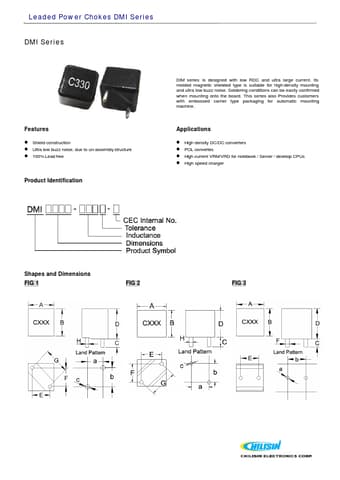

Leaded Power Chokes DMI Series DMI Series Features l Shield construction l Ultra low buzz noise, due to un-assembly structure l 100% Lead free Product Identification DIM series is designed with low RDC and ultra large current. Its molded magnetic shielded type is suitable for high-density mounting and ultra low buzz noise. Soldering conditions can be easily confirmed when mounting onto the board. This series also Provides customers with embossed carrier type packaging for automatic mounting machine. Applications l High density DC/DC converters l POL convertes l High current VRM/VRD for notebook / Server / desktop CPUs l High speed charger Shapes and Dimensions FIG 1 FIG 2 FIG 3 Leaded Power Chokes DMI Series Dimensions in mm TYPE FIG DMI0807-1R0M -N 3 A 8.5±0.5 B 8.5±0.5 C 3.
