CMDA43 - (CMDA43 / CMDA44) Power LED (1watt) Technical Datasheet

Product Overview

Chicago Miniature Lamp

Datasheet Details

Part number	CMDA43
Manufacturer	Chicago Miniature Lamp
File Size	739.78 KB
Description	(CMDA43 / CMDA44) Power LED (1watt) Technical Datasheet
Datasheet	CMDA43 Datasheet
Additional preview pages of the CMDA43 datasheet.

Product details

Description

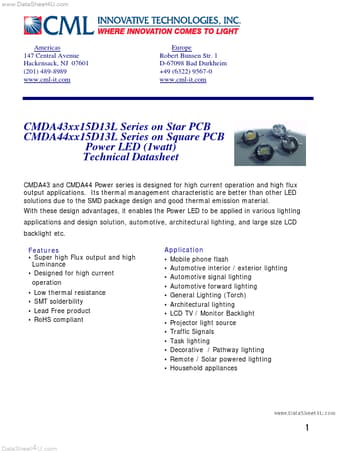

Symbol Pure White Warm White Blue Green Red Cyan Amber CRI Ra 76 76 Forward Voltage (volts) Min./Typ./Max.V 3.0 / 3.4 / 4.3 3.0 / 3.4 / 4.3 3.0 / 3.4 / 4.3 3.0 / 3.4 / 4.3 2.0 / 2.5 / 3.0 3.0 / 3.4 / 4.3 2.0 / 2.5 / 3.0 View Angle (degrees) 2Θ 1/2 120 120 130 130 128 130 128 Thermal resistance (ºC /W) Rθ [4] 16 16 16 16 19 16 19 λD CMDA43CW15D13L CMDA43WW15D13L CMDA43CB15D13L CMDA43AG15D13L CMDA43AR15D13L CMDA43GB15D13L CMDA43DY15D13L 455 / 460 / 475 520 / 527 / 535 620 / 625 / 630 500 /

Features

Super high Flux output and high Luminance.
Designed for high current operation.
Low thermal resistance SMT solderbility Lead Free product RoHS compliant.
