CS8151C - 5V 100mA Low Dropout Linear Regulator

Cherry Semiconductor Corporation

Datasheet Details

Part number	CS8151C
Manufacturer	Cherry Semiconductor Corporation
File Size	142.27 KB
Description	5V 100mA Low Dropout Linear Regulator
Datasheet	CS8151C_CherrySemiconductorCorporation.pdf

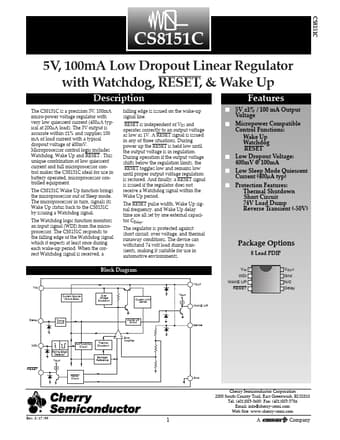

The CS8151C is a precision 5V, 100mA micro-power voltage regulator with very low quiescent current (400µA typical at 200µA load).

s 5V ±1% / 100 mA Output Voltage s Micropower Compatible Control Functions: Wake Up Watchdog RESET s Low Dropout Voltage: 400mV @ 100mA s Low Sleep Mode Quiescent Current (400µA typ) s Protection Features: Thermal Shutdown Short Circuit 74V Load Dump Reverse Transient (-50V) Package Options 8 Lead PDIP VIN WDI WAKE UP RESET 1 Block Diagram VOUT VIN Current Source (Circuit Bias) Over Voltage Shutdown VOUT Current Limit Sense VOUT Gnd N/C Delay WAKE UP Delay Timing Circuit WAKE UP Circuit.
