CS8135 - 5V/ 5V Low Dropout Dual Regulator

Description

The CS8135 is a low dropout, high current, dual 5V linear regulator.

The secondary 5V /10mA output is often used for powering systems with standby memory.

Quiescent current drain is less than 3mA when supplying 10mA loads from the standby regulator.

Features

  • s Two Regulated Outputs Primary Output 5V ± 5%; 500mA Secondary Standby 5V ±5%; 10mA s Low Dropout Voltage (0.6V at 0.5A) s ON/OFF Control Option s Low Quiescent Drain (.

📥 Download Datasheet

Datasheet Details

Part number CS8135
Manufacturer Cherry Semiconductor Corporation
File Size 180.18 KB
Description 5V/ 5V Low Dropout Dual Regulator
Datasheet download datasheet CS8135 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CS8130 MULTI STANDARD INFRARED TRANSCEIVER Cirrus Logic
CS8138S Audio Power Amplifier CHIPSTAR
CS8139S 5.0W mono audio power amplifier ChipSourceTek
CS8101 Low Dropout Linear Regulator ON Semiconductor
CS810N3A TRIACS JILIN SINO

Other Datasheets by Cherry Semiconductor Corporation

Part Number Description
CS8101 100mA Low Dropout Linear Regulator
CS8120 5V/ 300mA Linear Regulator with and ENABLE RESET
CS8121 5V/ 1A Linear Regulator with and ENABLE RESET
CS8122 2% 5V 750mA Low Dropout Linear Regulator
CS8126 750mA Low Dropout Linear Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

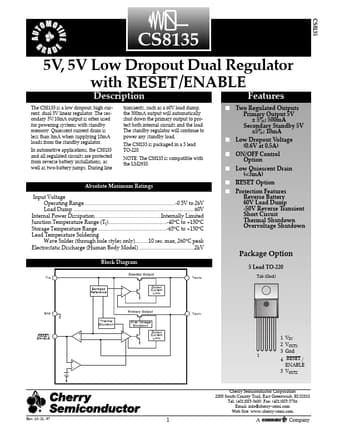

CS8135 CS8135 5V, 5V Low Dropout Dual Regulator with RESET /ENABLE Description The CS8135 is a low dropout, high current, dual 5V linear regulator. The secondary 5V /10mA output is often used for powering systems with standby memory. Quiescent current drain is less than 3mA when supplying 10mA loads from the standby regulator. In automotive applications, the CS8135 and all regulated circuits are protected from reverse battery installations, as well as two-battery jumps. During line transients, such as a 60V load dump, the 500mA output will automatically shut down the primary output to protect both internal circuits and the load. The standby regulator will continue to power any standby load. The CS8135 is packaged in a 5 lead TO-220. NOTE: The CS8135 is compatible with the LM2935.
