CS5101 - Secondary Side Post Regulator

Name: CS5101
SKU: CS5101-158229

Cherry Semiconductor Corporation

📥 Download Datasheet

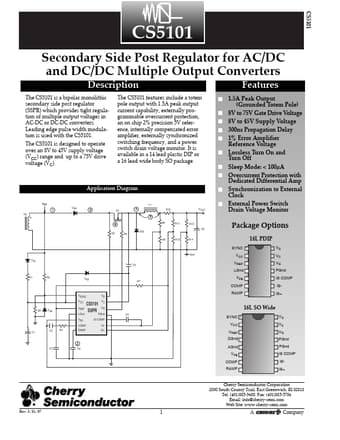

CS5101 Datasheet Preview — Preview of CS5101 PDF

Datasheet Details

Part number	CS5101
Manufacturer	Cherry Semiconductor Corporation
File Size	153.61 KB
Description	Secondary Side Post Regulator
Datasheet	CS5101_CherrySemiconductorCorporation.pdf

CS5101 Product details

Description

The CS5101 is a bipolar monolithic secondary side post regulator (SSPR) which provides tight regulation of multiple output voltages in AC-DC or DC-DC converters.

Features

include a totem pole output with 1.5A peak output current capability, externally programmable overcurrent protection, an on chip 2% precision 5V reference, internally compensated error amplifier, externally synchronized switching frequency, and a power switch drain voltage monitor. It is available in a 14 lead plastic DIP or a 16 lead wide body SO package. Features s 1.5A Peak Output (Grounded Totem Pole) s 8V to 75V Gate Drive Voltage s 8V to 45V Supply Voltage s 300ns Propagation Delay s 1% E.
