JT10.70MG82 - Ceramic Filter and Discriminator

Download the JT10.70MG82 datasheet PDF (JT10.70MC1 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ceramic filter and discriminator.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (JT10.70MC1-ChequersElectronic.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number JT10.70MG82
Manufacturer Chequers Electronic
File Size 123.26 KB
Description Ceramic Filter and Discriminator
Datasheet download datasheet JT10.70MG82 Datasheet

📁 Similar Datasheet

  • JT10.7 - Ceramic Filter (YIC)
  • JT10.7M - Ceramic Discriminator (Token)
  • JT10.7M - Ceramic Filter (RELM)
  • JT100K120F2MA1E - IGBT Modules (JILIN SINO)
  • JT102F - SUBMINIATURE HIGH POWER RELAY (Ningbo)
  • JT105F-1 - SUBMINIATURE HIGH POWER RELAY (Ningbo)
  • JT105F-2 - SUBMINIATURE HIGH POWER RELAY (Ningbo)
  • JT105F-4 - SUBMINIATURE HIGH POWER RELAY (Ningbo)
  • JT105F-5 - MINIATURE HIGH POWER RELAY (Ningbo)
Other Datasheets by Chequers Electronic

Full PDF Text Transcription

Click to expand full text

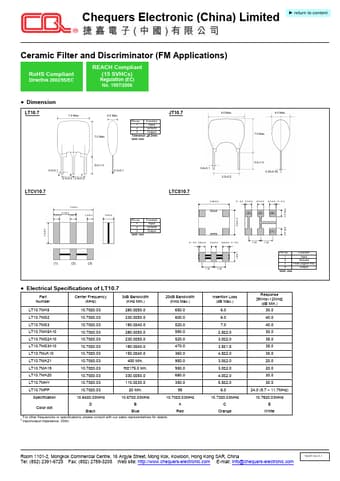

Chequers Electronic (China) Limited ► return to content Ceramic Filter and Discriminator (FM Applications) RoHS Compliant Directive 2002/95/EC REACH Compliant (15 SVHCs) Regulation (EC) No. 1907/2006 ● Dimension LT10.7 7.0 Max. 4.0 Max. 7.0 Max. Pin no. Function 1 Input 2 Ground 3 Output Tolerance: ±0.3mm Unit: mm JT10.7 9.0 Max. 4.0 Max. 7.0 Max. 0.5±0.1 3 2 1 2.5±0.2 2.5±0.2 5.0±1.0 0.3±0.1 LTCV10.7 7.0±0.3 4.1±0.4 1.2±0.3 1.2±0.3 1.2±0.3 1.5±0.2 Pin no. Function 1 Input 2 Ground 3 Output Unit: mm 3.0±0. 3 (1) (2) (3) 0.6±0.1 2.5±0.2 5.0±1.0 0.25±0.05 LTCS10.7 3.45±0.2 0 ~ 0.3 0.7±0.3 0.7±0.3 0.7±0.3 0 ~ 0.3 (3) (2) (4) 0.85±0.3 3.10±0.2 0.85±0.3 0 ~ 0.3 0.6±0.3 0.4±0.2 0.6±0.3 0 ~ 0.3 1.4±0.1 1.30 1.30 (1) 1.35 1.35 Pin no.
