CTMC1008, Wire-wound Chip Inductors

Ferrite core, wire-wound molded chip inductor Applications: TVs, VCRs, disk drives, computer peripherals, telecommunication devices and electronic control boards for automobiles Operating Temperature: -45°C to +85°C Storage Temperature: -55°C to +105°C Inductance Tolerance: ±5%, ±10% & ±20% Testing

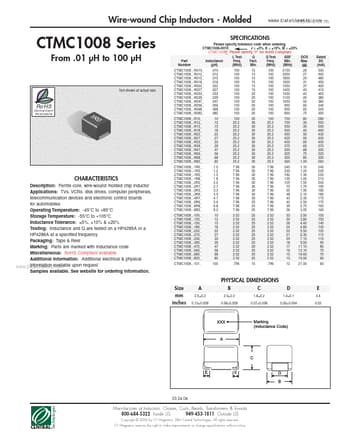

Wire-wound Chip Inductors - Molded ctparts.com CTMC1008 Series From .01 µH to 100 µH Part Number Not shown at actual size.

SPECIFICATIONS Please specify tolerance code when ordering.

CTMC1008-R010_ J = ±5%, K = ±10%, M = ±20% CTMC1008F Please specify “F” for RoHS Compliant Inductance (µH) .010 .012 .015 .018 .022 .027 .033 .039 .047 .056 .068 .082 .10 .12 .15 .18 .22 .27 .33 .39 .47 .56 .68 .82 1.0 1.2 1.5 1.8 2.2 2.7 3.3 3.9 4.7 5.6 6.8 8.2 10 12 15 18 22 27 33 39 47 56 68 82 100 L Test Freq
