CTLSH1-40M322 - SURFACE MOUNT HIGH CURRENT LOW VF SILICON SCHOTTKY DIODE TINY LEADLESS MODULE

Central Semiconductor

CTLSH1-40M322 Datasheet Preview — Preview of CTLSH1-40M322 PDF

Datasheet Details

Part number	CTLSH1-40M322
Manufacturer	Central Semiconductor ↗
File Size	203.59 KB
Description	SURFACE MOUNT HIGH CURRENT LOW VF SILICON SCHOTTKY DIODE TINY LEADLESS MODULE
Datasheet	CTLSH1-40M322_CentralSemiconductor.pdf

CTLSH1-40M322 Product details

Description

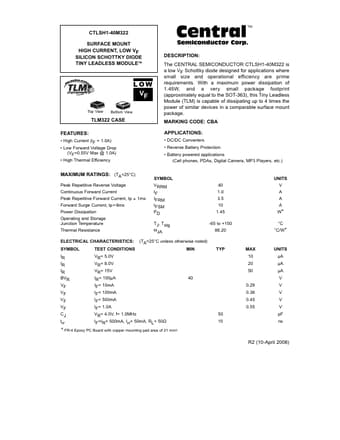

TM Semiconductor Corp.LOW VF Top View Bottom View The CENTRAL SEMICONDUCTOR CTLSH1-40M322 is a low VF Schottky diode designed for applications where small size and operational efficiency are prime requirements.With a maximum power dissipation of 1.45W, and a very small package footprint (approximately equal to the SOT-363), this Tiny Leadless Module (TLM) is capable of dissipating up to 4 times the power of similar devices in a comparable surface mount package.MARKING CODE: CBA APPLICATI

Features

High Current (IF = 1.0A).
Low Forward Voltage Drop (VF=0.55V Max @ 1.0A).
High Thermal Efficiency.
