CSL05D - SURFACE MOUNT SILICON ULTRA LOW CAPACITANCE TRANSIENT VOLTAGE SUPPRESSORS

Download the CSL05D datasheet PDF (CSL05 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount silicon ultra low capacitance transient voltage suppressors.

Description

The CENTRAL SEMICONDUCTOR CSL05 (Single) and CSL05D (Dual) types are ultra low capacitance transient voltage suppressors packaged in the SOT-23 surface mount package.

These devices provide excellent protection from spurious voltage transients.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CSL05-CentralSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CSL05D
Manufacturer Central Semiconductor
File Size 621.52 KB
Description SURFACE MOUNT SILICON ULTRA LOW CAPACITANCE TRANSIENT VOLTAGE SUPPRESSORS
Datasheet download datasheet CSL05D Datasheet

📁 Similar Datasheet

Other Datasheets by Central Semiconductor
  • CSL05 - SURFACE MOUNT SILICON ULTRA LOW CAPACITANCE TRANSIENT VOLTAGE SUPPRESSORS
  • CSLLDM22011-225F - N-CHANNEL MOSFET

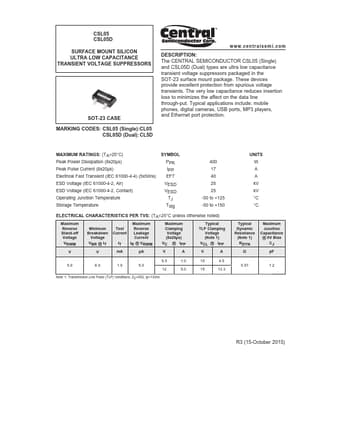

Full PDF Text Transcription

Click to expand full text
CSL05 CSL05D SURFACE MOUNT SILICON ULTRA LOW CAPACITANCE TRANSIENT VOLTAGE SUPPRESSORS SOT-23 CASE MARKING CODES: CSL05 (Single):CL05 CSL05D (Dual): CL5D w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR CSL05 (Single) and CSL05D (Dual) types are ultra low capacitance transient voltage suppressors packaged in the SOT-23 surface mount package. These devices provide excellent protection from spurious voltage transients. The very low capacitance reduces insertion loss to minimizes the affect on the data line through-put. Typical applications include: mobile phones, digital cameras, USB ports, MP3 players, and Ethernet port protection.
