CMPD6263C, CMPD6263 SURFACE MOUNT SILICON SCHOTTKY DIODES

Central Semiconductor

Description

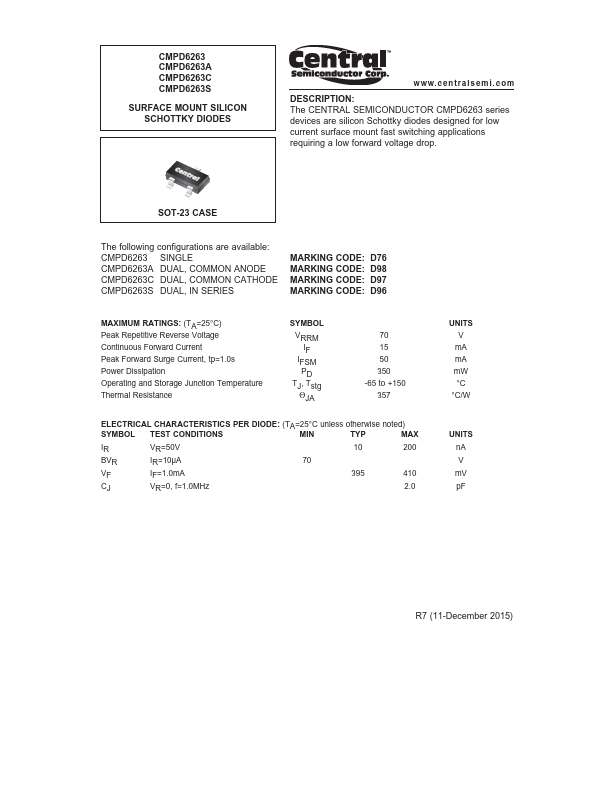

CMPD6263 CMPD6263A CMPD6263C CMPD6263S SURFACE MOUNT SILICON SCHOTTKY DIODES w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR CMPD6263 series devices are silicon Schottky diodes designed for low current surface mount fast switching applications requ.

📥 Download Datasheet

CMPD6263C Datasheet Preview — This datasheet PDF includes multiple part numbers: CMPD6263C, CMPD6263. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: CMPD6263C, CMPD6263
Manufacturer: Central Semiconductor ↗
File Size: 749.85 KB
Datasheet: CMPD6263-CentralSemiconductor.pdf
Description: SURFACE MOUNT SILICON SCHOTTKY DIODES
Note: This datasheet PDF includes multiple part numbers: CMPD6263C, CMPD6263.
Please refer to the document for exact specifications by model.

Applications

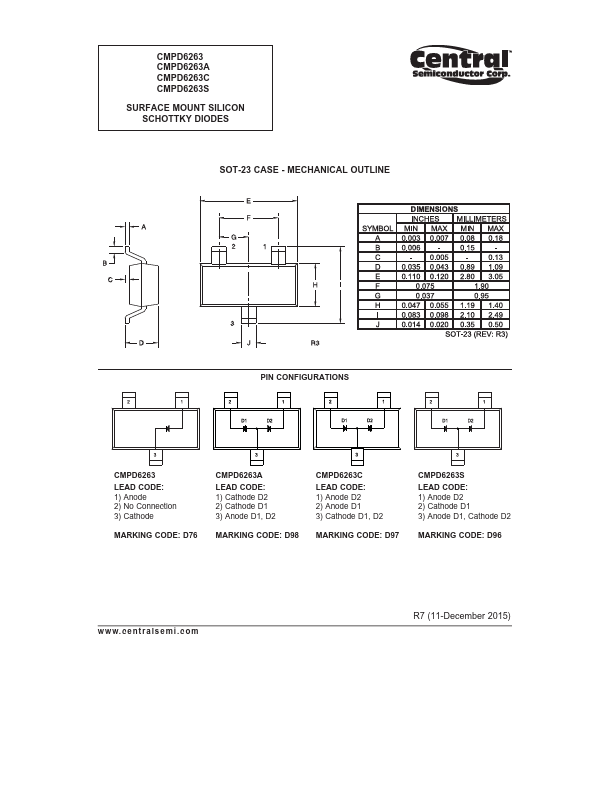

* requiring a low forward voltage drop. SOT-23 CASE The following configurations are available: CMPD6263 SINGLE CMPD6263A DUAL, COMMON ANODE CMPD6263C DUAL, COMMON CATHODE CMPD6263S DUAL, IN SERIES MARKING CODE: D76 MARKING CODE: D98 MARKING CODE: D97 MARKING CODE: D96 MAXIMUM RATINGS: (TA=25°C) P
