1N5985B - SILICON ZENER DIODES

1N5985B Description

1N5985B THRU 1N6020B SILICON ZENER DIODES 500mW, 2.4 THRU 68 VOLTS 5% TOLERANCE w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR 1N5985B series are high quality silicon Zener diodes designed for low leakage applications.

1N5985B Applications

* DO-35 CASE MAXIMUM RATINGS: (TL=50°C) Power Dissipation Operating and Storage Junction Temperature SYMBOL PD TJ, Tstg 500 -65 to +200 UNITS mW °C ELECTRICAL CHARACTERISTICS: (TL=30°C) VF=1.5V MAX @ IF=100mA (for all types) TYPE ZENER VOLTAGE VZ @ IZT TEST CURRENT MAXIMUM ZENER IMPEDANCE

📥 Download Datasheet

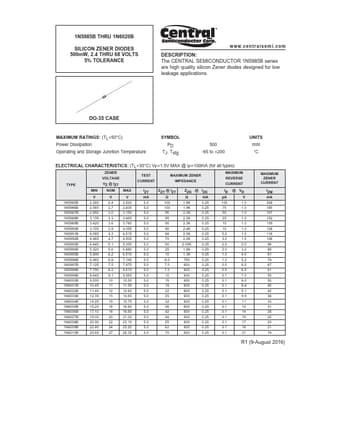

Preview of 1N5985B PDF
datasheet Preview Page 2 datasheet Preview Page 3
