1N5518B - SILICON ZENER DIODES

1N5518B Description

1N5518B THRU 1N5546B SILICON ZENER DIODES 400mW, 3.3 THRU 33 VOLT ±5% TOLERANCE w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR 1N5518B series silicon Zener diode is designed for low leakage, low current, and low noise applications.

1N5518B Applications

* MARKING: FULL PART NUMBER DO-35 CASE MAXIMUM RATINGS: (TA=25°C) Power Dissipation Operating and Storage Junction Temperature SYMBOL PD TJ, Tstg 400 -65 to +200 UNITS mW °C ELECTRICAL CHARACTERISTICS: (TA=25°C) VF=1.1V MAX @ IF=200mA (for all types) Type Zener Voltage VZ @ IZT MIN NOM MAX

📥 Download Datasheet

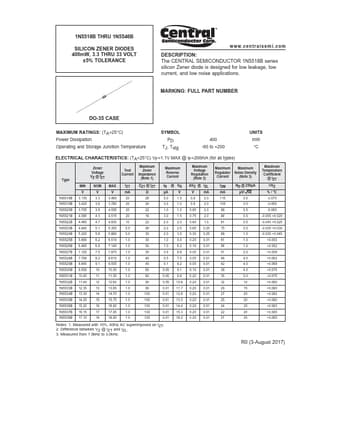

Preview of 1N5518B PDF
datasheet Preview Page 2 datasheet Preview Page 3
