CMPSH1-4 - SURFACE MOUNT HIGH CURRENT SCHOTTKY BARRIER RECTIFIER

Description

The CENTRAL SEMICONDUCTOR CMPSH1-4 is a High Current, Schottky Rectifier in a surface mount SOT-23F package suitable for high current applications in mobile communications and DC-DC converters.

Features

  • High Current (1.0 Amp).
  • Power SOT-23F Package.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CMPSH-3 Surface Mount Schottky Barrier Rectifiers Array SeCoS
CMPSH-3 SCHOTTKY DIODE RECTRON
CMPSH-3 Switching Diode MCC
CMPSH-3 Schottky Barrier Diode LGE
CMPSH-3 SCHOTTKY BARRIER DIODE JCST

Other Datasheets by Central Semiconductor

Part Number Description
CMPSH-3 SCHOTTKY DIODES
CMPSH-3A SCHOTTKY DIODES
CMPSH-3C SCHOTTKY DIODES
CMPSH-3S SCHOTTKY DIODES
CMPS5062 SURFACE MOUNT SILICON CONTROLLED RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

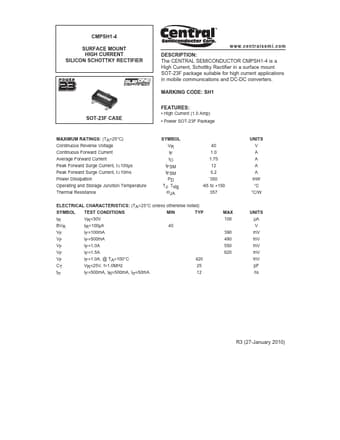

CMPSH1-4 SURFACE MOUNT HIGH CURRENT SILICON SCHOTTKY RECTIFIER SOT-23F CASE w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR CMPSH1-4 is a High Current, Schottky Rectifier in a surface mount SOT-23F package suitable for high current applications in mobile communications and DC-DC converters. MARKING CODE: SH1 FEATURES: • High Current (1.0 Amp) • Power SOT-23F Package MAXIMUM RATINGS: (TA=25°C) Continuous Reverse Voltage Continuous Forward Current Average Forward Current Peak Forward Surge Current, t≤100µs Peak Forward Surge Current, t≤10ms Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL VR IF IO IFSM IFSM PD TJ, Tstg ΘJA 40 1.0 1.75 12 5.
