CMOZ10V - SURFACE MOUNT SILICON ZENER DIODE

The CMOZ10V by Central Semiconductor Corp is a SURFACE MOUNT SILICON ZENER DIODE. Below is the official datasheet preview.

📥 Download Datasheet

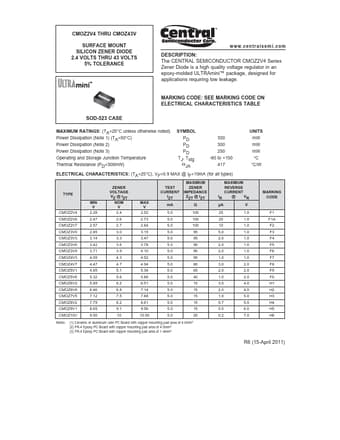

Official preview page of the CMOZ10V SURFACE MOUNT SILICON ZENER DIODE datasheet (Central Semiconductor Corp).

CMOZ10V Product details

Description

TM Semiconductor Corp.The CENTRAL SEMICONDUCTOR CMOZ2V4 Series Zener Diode is a high quality voltage regulator in an epoxy-molded ULTRAmini™ package, designed for applications requiring low leakage.SOD-523 CASE ABSOLUTE MAXIMUM RATINGS: Power Dissipation (@TA =50°C) Operating and Storage Temperature SYMBOL PD TJ, Tstg 350 -65 to +175 UNIT mW °C ELECTRICAL CHARACTERISTICS: (TA=25°C), VF=0.9 MAX @ IF=10mA FOR ALL TYPES.ZENER VOLTAGE VZ @ IZT TEST CURRENT MAXIMUM ZENER IMPEDANCE MAXIMUM RE
