2N6295 - COMPLEMENTARY SILICON DARLINGTON POWER TRANSISTORS

Description

The CENTRAL SEMICONDUCTOR 2N6294, 2N6296 series devices are complementary silicon Darlington power transistors, manufactured by the epitaxial base process, designed for high gain amplifier and medium speed switching applications.

📥 Download Datasheet

📁 Similar Datasheet

  • 2N6295 - DARLINGTON COMPLEMENTARY SILICON POWER TRANSISTOR (Seme LAB)
  • 2N6295 - Silicon Power Transistors (SavantIC)
  • 2N6290 - Power Transistors (RECTRON)
  • 2N6290 - Silicon NPN Power Transistors (Savantic)
  • 2N6290 - NPN PLASTIC POWER TRANSISTOR (CDIL)
  • 2N6290 - NPN Transistor (INCHANGE)
  • 2N6290 - COMPLEMENTARY SILICON POWER TRANSISTORS (Central Semiconductor)
  • 2N6291 - Power Transistors (RCA)
  • 2N6291 - Silicon Power Transistors (SavantIC)
  • 2N6291 - NPN Transistor (INCHANGE)
Other Datasheets by Central Semiconductor Corp
  • 2N6294 - COMPLEMENTARY SILICON DARLINGTON POWER TRANSISTORS
  • 2N6296 - COMPLEMENTARY SILICON DARLINGTON POWER TRANSISTORS
  • 2N6297 - COMPLEMENTARY SILICON DARLINGTON POWER TRANSISTORS
  • 2N6249 - NPN SILICON TRANSISTOR
  • 2N6250 - NPN SILICON TRANSISTOR
  • 2N6251 - NPN SILICON TRANSISTOR
  • 2N6029 - COMPLEMENTARY SILICON POWER TRANSISTORS
  • 2N6030 - COMPLEMENTARY SILICON POWER TRANSISTORS

Full PDF Text Transcription

Click to expand full text

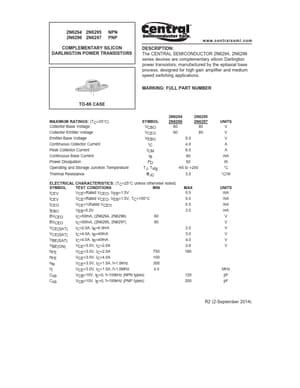

2N6294 2N6295 NPN 2N6296 2N6297 PNP COMPLEMENTARY SILICON DARLINGTON POWER TRANSISTORS w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR 2N6294, 2N6296 series devices are complementary silicon Darlington power transistors, manufactured by the epitaxial base process, designed for high gain amplifier and medium speed switching applications. MARKING: FULL PART NUMBER TO-66 CASE MAXIMUM RATINGS: (TC=25°C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Peak Collector Current Continuous Base Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL VCBO VCEO VEBO IC ICM IB PD TJ, Tstg JC 2N6294 2N6296 60 2N6295 2N6297 80 60 80 5.0 4.0 8.0 80 50 -65 to +200 3.
