24WC02 1K/2K/4K/8K/16K-Bit Serial E2PROM

24WC02 Description

CAT24WC01/02/04/08/16 1K/2K/4K/8K/16K-Bit Serial E2PROM .
The CAT24WC01/02/04/08/16 is a 1K/2K/4K/8K/16Kbit Serial CMOS E2PROM internally organized as 128/ 256/512/1024/2048 words of 8 bits each.

24WC02 Features

* s 400 KHZ I C Bus Compatible
* s 1.8 to 6.0Volt Operation s Low Power CMOS Technology s Write Protect Feature 2 s Self-Timed Write Cycle with Auto-Clear s 1,000,000 Program/Erase Cycles s 100 Year Data Retention s 8-pin DIP, 8-pin SOIC or 8 pin TSSOP s Commercial, Industrial and Automotive

📥 Download Datasheet

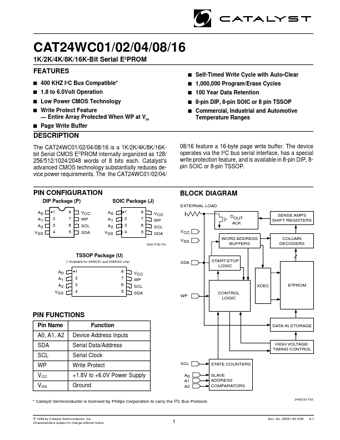

Preview of 24WC02 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
24WC02
Manufacturer
CatalystSemiconductor
File Size
45.44 KB
Datasheet
24WC02_CatalystSemiconductor.pdf
Description
1K/2K/4K/8K/16K-Bit Serial E2PROM
