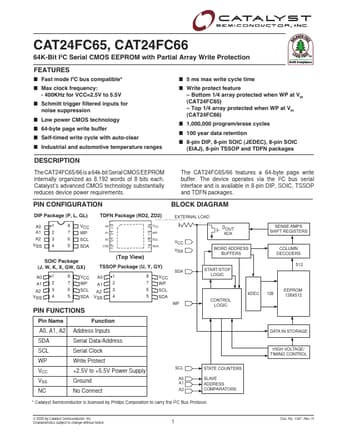

CAT24FC66, CAT24FC65 - (CAT24FC65 / CAT24FC66) 64K-Bit I2C Serial CMOS EEPROM

Catalyst Semiconductor

Datasheet Details

Part number	CAT24FC66, CAT24FC65
Manufacturer	Catalyst Semiconductor
File Size	472.63 KB
Description	(CAT24FC65 / CAT24FC66) 64K-Bit I2C Serial CMOS EEPROM
Datasheet	CAT24FC65_CatalystSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CAT24FC66, CAT24FC65. Please refer to the document for exact specifications by model.

The CAT24FC65/66 is a 64k-bit Serial CMOS EEPROM internally organized as 8,192 words of 8 bits each.

I Fast mode I2C bus compatible.
I Max clock frequency: I 5 ms max write cycle time I Write protect feature - 400KHz for VCC=2.5V to 5.5V I Schmitt trigger filtered inputs for noise suppression I Low power CMOS technology I 64-byte page write buffer I Self-timed write cycle with auto-clear I Industrial and automotive temperature ranges.
Bottom 1/4 array protected when WP at VIH (CAT24FC65).
Top 1/4 array protected when WP at VIH (CAT24FC66) I 1,000,000 program/erase cycle.
