CAT24C021 - Serial CMOS E2PROM / Precision Reset Controller and Watchdog Timer

Description

The CAT24CXXX is a single chip solution to three popular functions of EEPROM memory, precision reset controller and watchdog timer.

The 24C161/162(16K), 24C081/082(8K), 24C041/042(4K) and 24C021/022(2K) feature a I2C Serial CMOS EEPROM.

Features

  • s Watchdog Timer on SDA for 24CXX1 s Programmable Reset Threshold s 400 KHz I2C Bus Compatible s 2.7 to 6 Volt Operation s Low Power CMOS Technology s 16 - Byte Page Write Buffer s Built-in inadvertent write protection s s s s s Active High or Low Reset Outputs.
  • VCC Lock Out.
  • Precision Power Supply Voltage Monitoring.
  • 5V, 3.3V and 3V options 1,000,000 Program/Erase Cycles 100 Year Data Retention 8-Pin DIP or 8-Pin SOIC Commercial, Industrial and Automotive Temperatur.

📥 Download Datasheet

Datasheet Details

Part number CAT24C021
Manufacturer Catalyst Semiconductor
File Size 85.63 KB
Description Serial CMOS E2PROM / Precision Reset Controller and Watchdog Timer
Datasheet download datasheet CAT24C021 Datasheet

📁 Similar Datasheet

  • CAT24C02 - CMOS Serial EEPROM (ON Semiconductor)
  • CAT24C01 - CMOS Serial EEPROM (ON Semiconductor)
  • CAT24C03 - 2-Kb and 4-Kb I2C Serial EEPROM (ON Semiconductor)
  • CAT24C04 - CMOS Serial EEPROM (ON Semiconductor)
  • CAT24C05 - 2-Kb and 4-Kb I2C Serial EEPROM (ON Semiconductor)
  • CAT24C08 - CMOS Serial EEPROM (ON Semiconductor)
  • CAT24C128 - 128kb I2C CMOS Serial EEPROM (ON Semiconductor)
  • CAT24C16 - CMOS Serial EEPROM (ON Semiconductor)
  • CAT24C164 - 16-kb CMOS Serial EEPROM (ON Semiconductor)
  • CAT24C208 - 8kb Dual Port Serial EEPROM (ON Semiconductor)
Other Datasheets by Catalyst Semiconductor

Full PDF Text Transcription

Click to expand full text

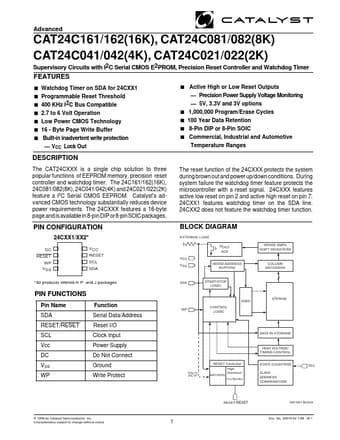

Advanced CAT24C161/162(16K), CAT24C081/082(8K) CAT24C041/042(4K), CAT24C021/022(2K) Supervisory Circuits with I2C Serial CMOS E2PROM, Precision Reset Controller and Watchdog Timer FEATURES s Watchdog Timer on SDA for 24CXX1 s Programmable Reset Threshold s 400 KHz I2C Bus Compatible s 2.7 to 6 Volt Operation s Low Power CMOS Technology s 16 - Byte Page Write Buffer s Built-in inadvertent write protection s s s s s Active High or Low Reset Outputs — VCC Lock Out — Precision Power Supply Voltage Monitoring — 5V, 3.
