DPAD10, DPAD1 - Dual Pico Amp Diodes

Calogic

The DPAD10 by Calogic is a Dual Pico Amp Diodes. Below is the official datasheet preview.

📥 Download Datasheet

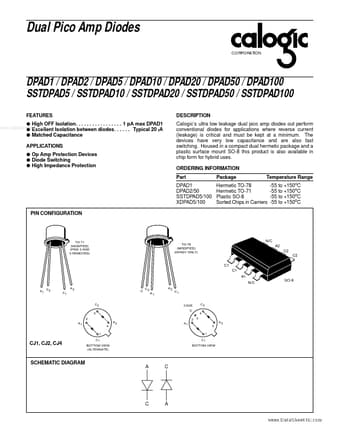

DPAD10 Dual Pico Amp Diodes by Calogic - Datasheet Preview — Official preview page of the **DPAD10** Dual Pico Amp Diodes datasheet (Calogic).

Datasheet Details

Part number	DPAD10, DPAD1
Manufacturer	Calogic
File Size	57.92 KB
Description	Dual Pico Amp Diodes
Datasheet	DPAD1_Calogic.pdf
Note	This datasheet PDF includes multiple part numbers: DPAD10, DPAD1. Please refer to the document for exact specifications by model.
Additional preview pages of the DPAD10 datasheet.

DPAD10 Product details

Description

Calogic’s ultra low leakage dual pico amp diodes out perform conventional diodes for applications where reverse current (leakage) is critical and must be kept at a minimum.

Features

www. DataSheet4U. com Excellent Isolation between diodes.
. Typical 20 fA.
High OFF Isolation.
. . 1 pA max DPAD1.
Matched Capacitance.
Op Amp Protection Devices.
Diode Switching.
High Impedance Protection.
