M116 - Diode Protected N-Channel Enhancement Mode MOSFET General Purpose Amplifier

Features

  • Low IGSS.
  • Integrated Zener Clamp for Gate Protection PIN.

📥 Download Datasheet

Datasheet Details

Part number M116
Manufacturer Calogic LLC
File Size 19.61 KB
Description Diode Protected N-Channel Enhancement Mode MOSFET General Purpose Amplifier
Datasheet download datasheet M116 Datasheet

📁 Similar Datasheet

Other Datasheets by Calogic LLC

    Full PDF Text Transcription

    Click to expand full text

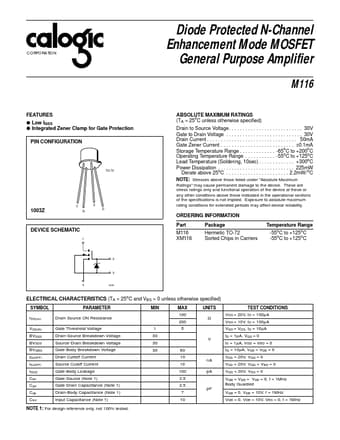

    CORPORATION Diode Protected N-Channel Enhancement Mode MOSFET General Purpose Amplifier M116 FEATURES • Low IGSS • Integrated Zener Clamp for Gate Protection PIN CONFIGURATION ABSOLUTE MAXIMUM RATINGS (TA = 25oC unless otherwise specified) Drain to Source Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . 30V Gate to Drain Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30V Drain Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA Gate Zener Current . . . . . . . . . . . . . . . . . . . . . . . . . . . ±0.1mA Storage Temperature Range . . . . . . . . . . . . . -65oC to +200oC Operating Temperature Range . . . . . . . . . . . -55oC to +125oC Lead Temperature (Soldering, 10sec) . . . . . . . . . . . . . +300oC Power Dissipation . . . .
