CL432B - 1.25VPrecision Adjustable Shunt Reference / Amplifier

Product Overview

📥 Download Datasheet

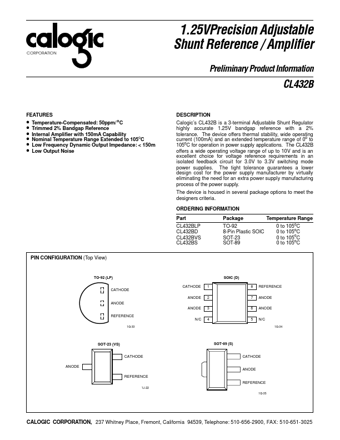

Datasheet preview – CL432B

Datasheet Details

Part number CL432B
Manufacturer Calogic LLC
File Size 43.61 KB
Description 1.25VPrecision Adjustable Shunt Reference / Amplifier
Datasheet download datasheet CL432B Datasheet
Additional preview pages of the CL432B datasheet.

Product details

Description

o Temperature-Compensated: 50ppm/ C Trimmed 2% Bandgap Reference Internal Amplifier with 150mA Capability Nominal Temperature Range Extended to 105oC Low Frequency Dynamic Output Impedance: < 150m Low Output Noise Calogic’s CL432B is a 3-terminal Adjustable Shunt Regulator highly accurate 1.25V bandgap reference with a 2% tolerance.The device offers thermal stability, wide operating current (100mA) and an extended temperature range
