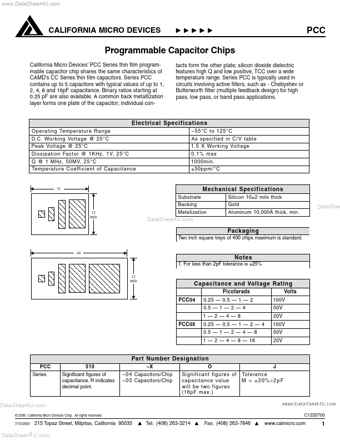

www.DataSheet4U.com CALIFORNIA MICRO DEVICES PCC Programmable Capacitor Chips California Micro Devices’ PCC Series thin film programmable capacitor chip shares the same characteristics of CAMD’s CC Series thin film capacitors.

Series PCC contains up to 5 capacitors with typical values of up to 1, 2, 4, 8 and 16pF capacitance.

Binary ratios starting at 0.25 pF are also available.

A common back metallization layer forms one plate of the capacitor; individual contacts form the other plate; silic

PCC Features

* high Q and low positive, TCC over a wide temperature range. Series PCC is typically used in circuits involving active filters, such as - Chebyshev or Butterworth filter (multiple feedback design) for high pass, low pass, or band pass applications. Electrical Specifications O p e r a t i n g Te m p
