CMV1020 - MICROPOWER PRO OPERATIONAL AMPLIFIER

Description

The CMV1020 is a high performance CMOS operational amplifier available in a small SOT23-5 package.

Operating with very low supply current, it is ideal for battery operated applications where power, space and weight are critical.

Features

  • Tiny SOT23-5 Package.
  • Guaranteed specs at 1.8V, 2.2V, 2.7V, 3V and 5V.
  • Very Low Supply current typically 85µA@ 3V.
  • Rail-to-Rail Output.
  • Typical Total Harmonic Distortion of 0.02% at 3V.
  • 1.66MHz Typical Gain Bandwidth Product.
  • 1V/µS Typical Slew Rate.

📥 Download Datasheet

Datasheet Details

Part number CMV1020
Manufacturer California Micro Devices Corp
File Size 262.31 KB
Description MICROPOWER PRO OPERATIONAL AMPLIFIER
Datasheet download datasheet CMV1020 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CMV12000 CMOS Image Sensor ams
CMV VCXO MTRONPTI
CMV-61CX Camera module Mitsumi Electronics
CMV2000 Global Shutter CMOS Image Sensor ams
CMV20000 20MP CMOS Machine Vision Image Sensor ams

Other Datasheets by California Micro Devices Corp

Part Number Description
CMV1026 MICROPOWER PRO OPERATIONAL AMPLIFIER
CMV1010 MICROPOWER PRO OPERATIONAL AMPLIFIER
CMV1016 MICROPOWER PRO OPERATIONAL AMPLIFIER
CMV1030 MICROPOWER PRO OPERATIONAL AMPLIFIER
CMV1036 MICROPOWER PRO OPERATIONAL AMPLIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

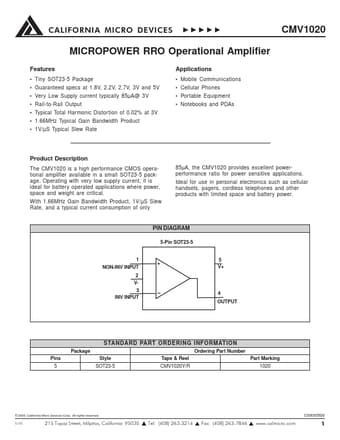

CALIFORNIA MICRO DEVICES CMV1020 MICROPOWER RRO Operational Amplifier Features • Tiny SOT23-5 Package • Guaranteed specs at 1.8V, 2.2V, 2.7V, 3V and 5V • Very Low Supply current typically 85µA@ 3V • Rail-to-Rail Output • Typical Total Harmonic Distortion of 0.02% at 3V • 1.66MHz Typical Gain Bandwidth Product • 1V/µS Typical Slew Rate Applications • Mobile Communications • Cellular Phones • Portable Equipment • Notebooks and PDAs Product Description The CMV1020 is a high performance CMOS operational amplifier available in a small SOT23-5 package. Operating with very low supply current, it is ideal for battery operated applications where power, space and weight are critical. With 1.
