PS9317L2, PS9317L - HIGH CMR 10Mbps OPEN COLLECTOR OUTPUT TYPE 8mm CREEPAGE 6-PIN SDIP PHOTOCOUPLER

California Eastern Labs

📥 Download Datasheet

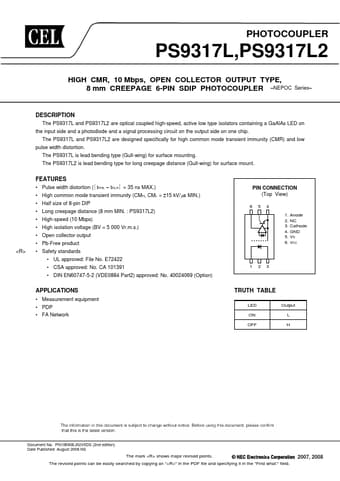

PS9317L2 Datasheet Preview — This datasheet PDF includes multiple part numbers: PS9317L2, PS9317L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PS9317L2, PS9317L
Manufacturer	California Eastern Labs
File Size	189.18 KB
Description	HIGH CMR 10Mbps OPEN COLLECTOR OUTPUT TYPE 8mm CREEPAGE 6-PIN SDIP PHOTOCOUPLER
Datasheet	PS9317L-CaliforniaEasternLabs.pdf
Note	This datasheet PDF includes multiple part numbers: PS9317L2, PS9317L. Please refer to the document for exact specifications by model.

PS9317L2 Product details

Description

The PS9317L and PS9317L2 are optical coupled high-speed, active low type isolators containing a GaAlAs LED on the input side and a photodiode and a signal processing circuit on the output side on one chip.

Features

Pulse width distortion (⏐tPHL.
tPLH⏐ = 35 ns MAX. ).
High common mode transient immunity (CMH, CML = ±15 kV/μs MIN. ).
Half size of 8-pin DIP.
Long creepage distance (8 mm MIN. : PS9317L2).
High-speed (10 Mbps).
High isolation voltage (BV = 5 000 Vr. m. s. ).
Open collector output.
Pb-Free product.
Safety standards.
UL approved: File No. E72422.
CSA approved: No. CA 101391.
DIN EN.
