PS9122 - HIGH-SPEED PHOTOCOUPLER

Name: PS9122
SKU: PS9122-832169

California Eastern Labs

📥 Download Datasheet

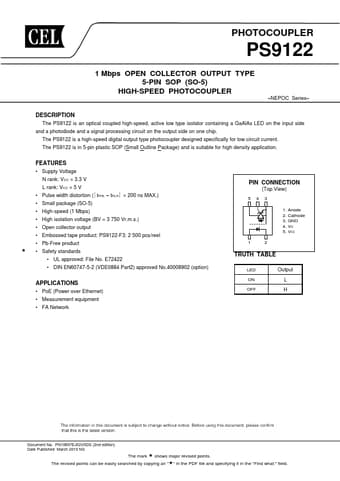

PS9122 Datasheet Preview — Preview of PS9122 PDF

Datasheet Details

Part number	PS9122
Manufacturer	California Eastern Labs
File Size	297.46 KB
Description	HIGH-SPEED PHOTOCOUPLER
Datasheet	PS9122-CaliforniaEasternLabs.pdf

PS9122 Product details

Description

The PS9122 is an optical coupled high-speed, active low type isolator containing a GaAlAs LED on the input side and a photodiode and a signal processing circuit on the output side on one chip. NEPOC Series

Features

ES.
Supply Voltage N rank: VCC = 3.3 V L rank: VCC = 5 V.
Pulse width distortion (⏐tPHL.
tPLH⏐ = 200 ns MAX. ).
Small package (SO-5).
High-speed (1 Mbps).
High isolation voltage (BV = 3 750 Vr. m. s. ).
Open collector output.
Embossed tape product: PS9122-F3: 2 500 pcs/reel.
Pb-Free product .
Safety standards.
UL approved: File No. E72422.
DIN EN60747-5-2 (VDE0884 Part2) approved No.40008902.
