PS8302L2, PS8302L - 6-PIN SDIP PHOTOCOUPLER

Name: PS8302L2
SKU: PS8302L2-831971

California Eastern Labs

📥 Download Datasheet

PS8302L2 Datasheet Preview — This datasheet PDF includes multiple part numbers: PS8302L2, PS8302L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PS8302L2, PS8302L
Manufacturer	California Eastern Labs
File Size	597.17 KB
Description	6-PIN SDIP PHOTOCOUPLER
Datasheet	PS8302L-CaliforniaEasternLabs.pdf
Note	This datasheet PDF includes multiple part numbers: PS8302L2, PS8302L. Please refer to the document for exact specifications by model.

PS8302L2 Product details

Description

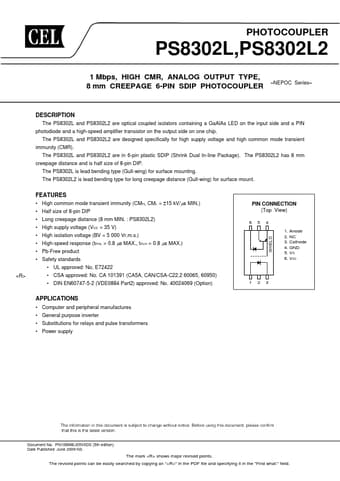

The PS8302L and PS8302L2 are optical coupled isolators containing a GaAlAs LED on the input side and a PIN photodiode and a high-speed amplifier transistor on the output side on one chip.

Features

High common mode transient immunity (CMH, CML = ±15 kV/µs MIN. ).
Half size of 8-pin DIP.
Long creepage distance (8 mm MIN. : PS8302L2).
High supply voltage (VCC = 35 V).
High isolation voltage (BV = 5 000 Vr. m. s. ).
High-speed response (tPHL = 0.8 µs MAX. , tPLH = 0.8 µs MAX. ).
Pb-Free product.
Safety standards.
UL approved: No. E72422.
CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 6.
