CLC3004, CLC1004 - (CLC1004 / CLC1014 / CLC3004) 750MHz Amplifiers

Cadeka

The CLC3004 by Cadeka is a (CLC1004 / CLC1014 / CLC3004) 750MHz Amplifiers. Below is the official datasheet preview.

📥 Download Datasheet

CLC3004 (CLC1004 / CLC1014 / CLC3004) 750MHz Amplifiers by Cadeka - Datasheet Preview — Official preview page of the **CLC3004** (CLC1004 / CLC1014 / CLC3004) 750MHz Amplifiers datasheet (Cadeka).

Datasheet Details

Part number	CLC3004, CLC1004
Manufacturer	Cadeka
File Size	2.68 MB
Description	(CLC1004 / CLC1014 / CLC3004) 750MHz Amplifiers
Datasheet	CLC1004_Cadeka.pdf
Note	This datasheet PDF includes multiple part numbers: CLC3004, CLC1004. Please refer to the document for exact specifications by model.

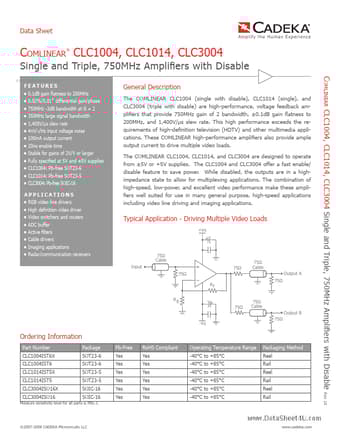

Additional preview pages of the CLC3004 datasheet.

CLC3004 Product details

Description

Comlinear CLC1004, CLC1014, CLC3004 Single and Triple, 750MHz Amplifiers with Disable The COMLINEAR CLC1004 (single with disable), CLC1014 (single), and CLC3004 (triple with disable) are high-performance, voltage feedback amplifiers that provide 750MHz gain of 2 bandwidth, ±0.1dB gain flatness to 200MHz, and 1,400V/μs slew rate.This high performance exceeds the requirements of high-definition television (HDTV) and other multimedia applications.These COMLINEAR high-performance amplifiers also

Features

n 0.1dB gain flatness to 200MHz n 0.02%/0.01˚ differential gain/phase n 750MHz -3dB bandwidth at G = 2 n 350MHz large signal bandwidth n 1,400V/μs slew rate n 4nV/√Hz input voltage noise n 100mA output current n 20ns enable time n Stable for gains of 2V/V or larger n Fully specified at 5V and ±5V supplies n CLC1004: Pb-free SOT23-6 n CLC1014: Pb-free SOT23-5 n CLC3004: Pb-free SOIC-16.
