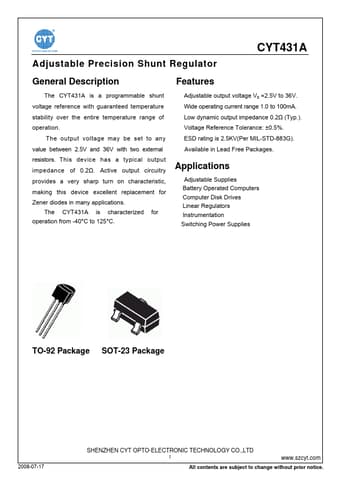

CYT431A, Adjustable Precision Shunt Regulator

The CYT431A is a programmable shunt voltage reference with guaranteed temperature stability over the entire temperature range of operation.

The output voltage may be set to any value between 2.5V and 36V with two external resistors.

This device has a typical output impedance of 0.2Ω.

Active output c

CYT431A Features

* Adjustable output voltage V0 =2.5V to 36V. Wide operating current range 1.0 to 100mA. Low dynamic output impedance 0.2Ω (Typ.). Voltage Reference Tolerance: ±0.5%. ESD rating is 2.5KV(Per MIL-STD-883G). Available in Lead Free Packages. Applications Adjustable Supplies Battery Operated Computers Comp
