TIP31CJ3 3A NPN Epitaxial Planar Power Transistor

CYStech

TIP31CJ3 Description

CYStech Electronics Corp.3A NPN Epitaxial Planar Power Transistor TIP31CJ3 Spec.No.: C609J3 Issued Date : 2014.06.06 Revised Date : Page No.: 1/6.
TIP31CJ3 is designed for use in general purpose amplifier and switching applications. Low collector-emitter saturation voltage, VCE.

TIP31CJ3 Features

* Low collector-emitter saturation voltage, VCE(sat) = 0.5V(max) @ IC = 3A
* High collector-emitter sustaining voltage, BVCEO(SUS) = 100V(min)
* High current gain-bandwidth product , fT = 3MHz(min) @ IC = 500mA
* Pb-free lead plating and halogen-free package Symbol T

📥 Download Datasheet

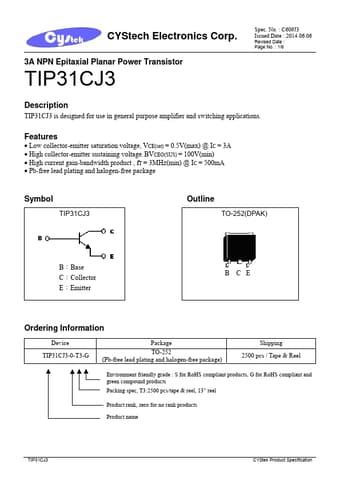

TIP31CJ3 Datasheet Preview — Preview of TIP31CJ3 PDF

Datasheet Details

Part number: TIP31CJ3
Manufacturer: CYStech
File Size: 274.13 KB
Datasheet: TIP31CJ3-CYStech.pdf
Description: 3A NPN Epitaxial Planar Power Transistor
