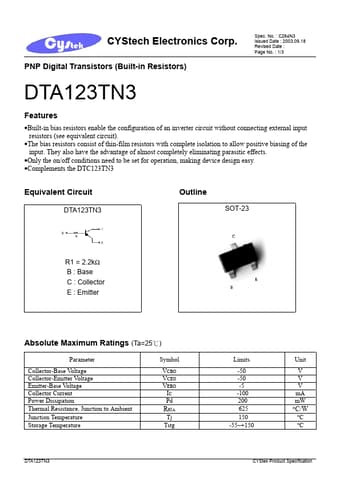

CYStech Electronics Corp.
PNP Digital Transistors (Built-in Resistors)
DTA123TN3
Spec. No. : C264N3 Issued Date : 2003.09.18 Revised Date : Page No. : 1/3
Features
•Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
•The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
•Only the on/off conditions need to be set for operation, making device design easy. •Complements the DTC123TN3
Equivalent Circuit
DTA123TN3
Outline
SOT-23
R1 = 2.
