DTA114YS3 - PNP Digital Transistors

CYStech

📥 Download Datasheet

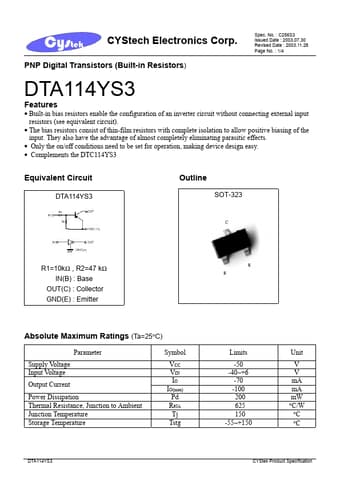

DTA114YS3 Datasheet Preview — Preview of DTA114YS3 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DTA114YS3
Manufacturer	CYStech
File Size	158.09 KB
Description	PNP Digital Transistors
Datasheet	DTA114YS3-CYStech.pdf

DTA114YS3 Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy.
Complements the DTC114YS3 Equivalent C.
