CDSS355CY - 75V/150mA SURFACE MOUNT SWITCHING DIODE

Features

Designed for mounting on small surface.
Extremely thin / leadless package.
High mounting capability, strong surge withstand, high reliability Mechanical data:.
Case: 0603(1608) standard package, molded plastic, JEDEC SOD-523.
Terminals : Gold plated, solderable per MIL-STD-750, method 2026.
Polarity: Indicated by cathode band.
Mounting position: Any.
Weight: 0.003 gram (approximately) Absolute Maximum Ratings(At Ta=25℃, unless otherwise noted) Charac.

CYStech

Datasheet Details

Part number	CDSS355CY
Manufacturer	CYStech
File Size	141.89 KB
Description	75V/150mA SURFACE MOUNT SWITCHING DIODE
Datasheet	CDSS355CY Datasheet

📁 Similar Datasheet

CDSS355 - High Speed (Formosa MS)
CDSS355 - SMD Switching Diode (Comchip Technology)
CDSS101A - SMD Switching Diode (Comchip Technology)
CDSS4148 - SMD Switching Diode (Comchip Technology)
CDS-1401 - Fast-Settling Correlated Double Sampling (Datel)
CDS-1402 - Very Fast-Settling Correlated Double Sampling (Datel)
CDS-9036 - Service Manual (Pioneer)
CDS2C15GTH - (CDSxCxxGTH) Cera Diode (Epcos)
CDS2C16GTH - (CDSxCxxGTH) Cera Diode (Epcos)
CDS3 - CeraDiode Reliable ESD protection of single lines (EPCOS)

Other Datasheets by CYStech

Full PDF Text Transcription

Click to expand full text

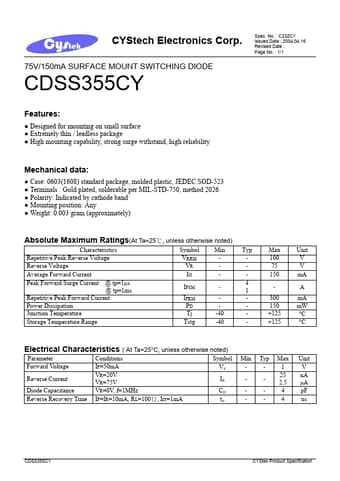

CYStech Electronics Corp. 75V/150mA SURFACE MOUNT SWITCHING DIODE CDSS355CY Spec. No. : C332CY Issued Date : 2004.04.16 Revised Date : Page No. : 1/1 Features: ● Designed for mounting on small surface ● Extremely thin / leadless package ● High mounting capability, strong surge withstand, high reliability Mechanical data: ● Case: 0603(1608) standard package, molded plastic, JEDEC SOD-523 ● Terminals : Gold plated, solderable per MIL-STD-750, method 2026. ● Polarity: Indicated by cathode band ● Mounting position: Any ● Weight: 0.
