MURS140 Ultra-fast Plastic Rectifiers

MURS140 Description

CYStech Electronics Corp.Spec.No.: C765SB Issued Date : 2009.05.15 Revised Date : 2014.09.24 Page No.: 1/6 Ultra-fast Plastic Rectifiers Reverse.

MURS140 Features

* Glass passivated junction
* Plastic package has UL flammability classification 94V-0
* Ultra-fast recovery time for high efficiency
* Ideally suited for use in very high frequency switching power supplies, inverters, and as a free wheeling diode

MURS140 Applications

* High temperature soldering guaranteed: 250°C/10seconds on terminals Outline DO-214AA (SMB) Mechanical Data
* Case : JEDEC DO-214AA(SMB) molded plastic body
* Terminals: Pure tin plated, solderable per MIL-STD-750 method 2026
* Polarity: Color band denotes cathode end.
* Weigh

📥 Download Datasheet

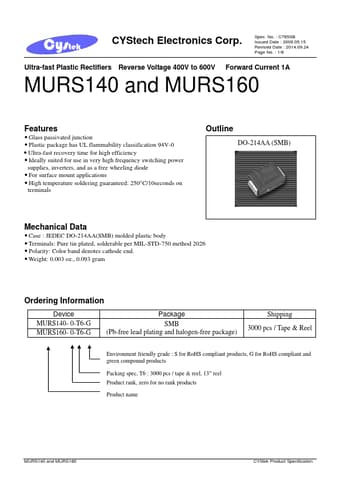

Preview of MURS140 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MURS140
Manufacturer
CYStech Electronics
File Size
336.38 KB
Datasheet
MURS140-CYStechElectronics.pdf
Description
Ultra-fast Plastic Rectifiers
