MTS2072G6 - Dual N-Channel Enhancement Mode MOSFET

Description

The MTS2072G6 consists of two different N-channel enhancement-mode MOSFETs in a single TSOP-6 package, providing the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

Features

  • Simple drive requirement.
  • Low gate charge.
  • Low on-resistance.
  • Fast switching speed.
  • Pb-free lead plating and halogen-free package Equivalent Circuit MTS2072G6 Outline TSOP-6 S2 G2 D1 G：Gate S：Source D：Drain Pin 1 D2 S1 G1 MTS2072G6 CYStek Product Specification CYStech Electronics Corp. Spec. No. : C.

📥 Download Datasheet

Datasheet Details

Part number MTS2072G6
Manufacturer CYStech Electronics
File Size 346.39 KB
Description Dual N-Channel Enhancement Mode MOSFET
Datasheet download datasheet MTS2072G6 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MTS2916A Dual Full-Bridge Motor Driver Microchip
MTS-18B 15 Million cycles MTS-18B Transfer Switch DC to 18 GHz Mini-Circuits
MTS102 (MTS102 - MTS105) Silicon Temperature Sensors Motorola
MTS103 (MTS102 - MTS105) Silicon Temperature Sensors Motorola
MTS105 (MTS102 - MTS105) Silicon Temperature Sensors Motorola

Other Datasheets by CYStech Electronics

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

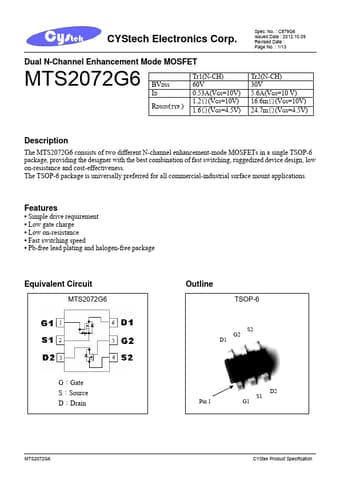

CYStech Electronics Corp. Spec. No. : C879G6 Issued Date : 2012.10.09 Revised Date : Page No. : 1/13 Dual N-Channel Enhancement Mode MOSFET MTS2072G6 BVDSS Tr1(N-CH) 60V ID 0.53A(VGS=10V) RDSON(TYP.) 1.2Ω(VGS=10V) 1.6Ω(VGS=4.5V) Tr2(N-CH) 30V 5.6A(VGS=10 V) 16.6mΩ(VGS=10V) 24.7mΩ(VGS=4.5V) Description The MTS2072G6 consists of two different N-channel enhancement-mode MOSFETs in a single TSOP-6 package, providing the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TSOP-6 package is universally preferred for all commercial-industrial surface mount applications.
